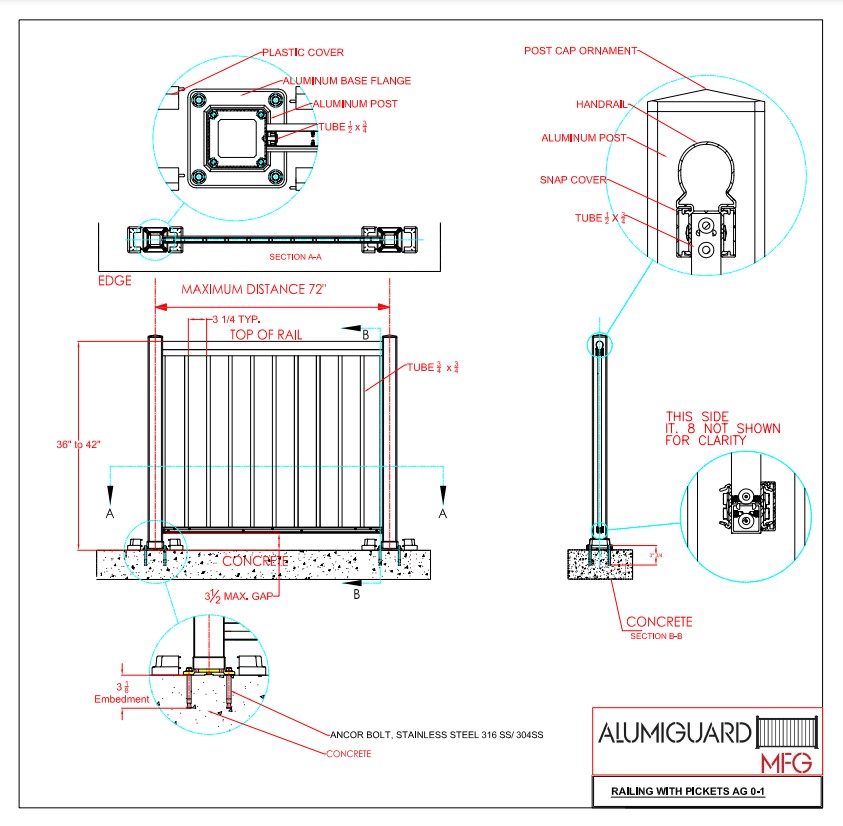

Information for Picket Railing System – Alumiguard MFG

1. Product Name:

Picket Railing System from AlumiguardMFG

2. Model Codes:

  • AG 01, AG 11, AG 12, AG 21, AG 22, AG 23, AG 24, AG 31, AG 32, AG 33

3. Mounting Options:

  • Face Mount / Top Mount (for concrete slabs)

4. Materials:

  • Aluminum Alloy: 6063-T5
  • Posts: Square, available in 3” x 3” and 2” x 2”
  • Pickets: ¾” x ¾”, spaced 3 ¼ inches c/c
  • Spindles: ½” x ¾”, attached with stainless steel self-tapping screws
  • Handrail Options: AG100, AG200, AG300 (Max Length: 192”)
  • Bottom Channel Length: 192”

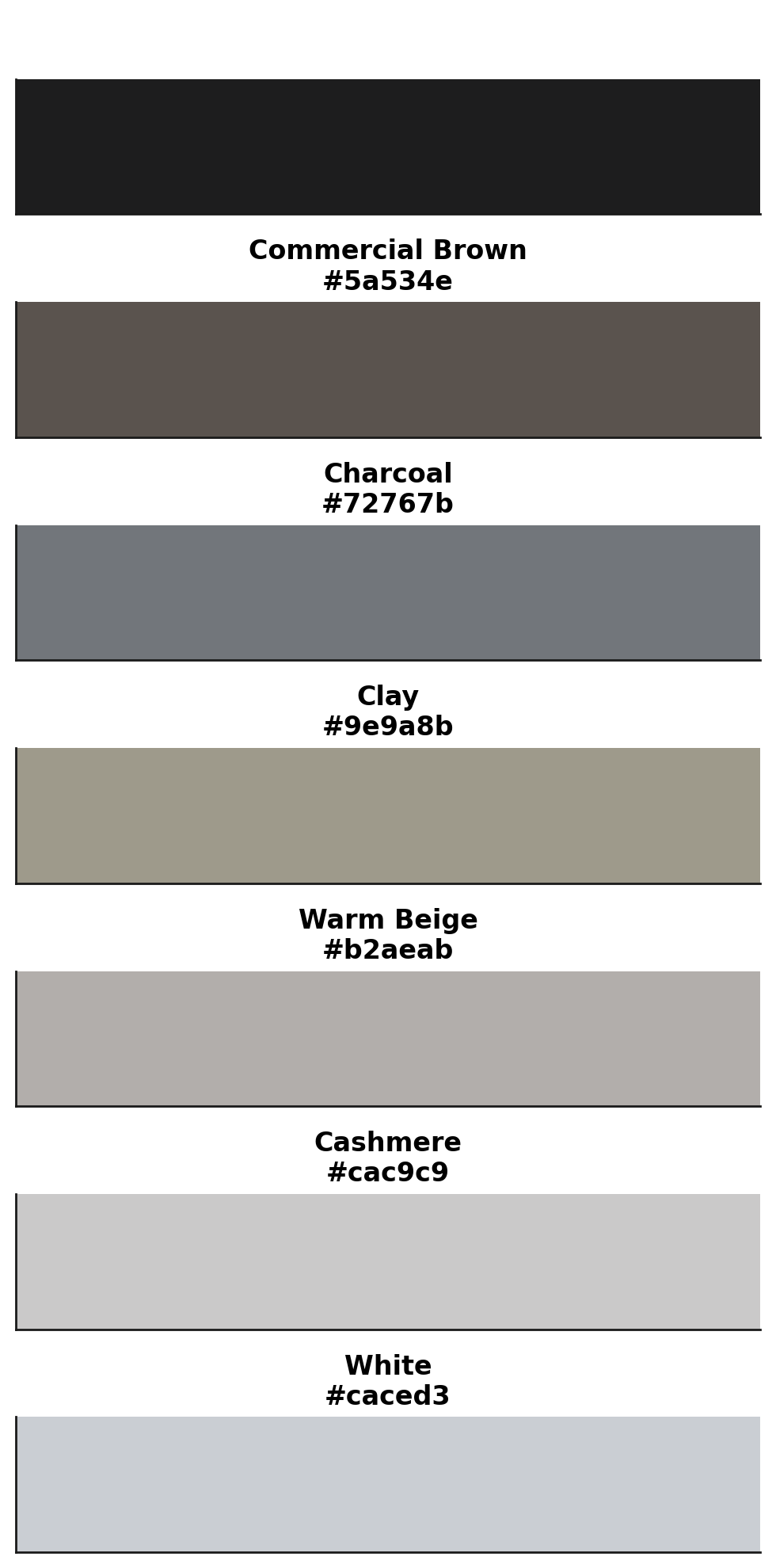

5. Finishes:

  • Powder-Coated Colors:
    • White, Warm Beige, Black, Clay, Commercial Brown, Charcoal, Cashmere

6. Bindings & Fasteners:

  • Anchor Bolts & Plugs: Steel Type 316 SS / 304 SS
  • Self-Tapping Screws: Stainless Steel

7. Fabrication & Delivery:

  • Pre-assembled aluminum railing elements delivered to the job site

8. Railing Height Standards (Ontario Building Code – OBC 9.8.8.3):

  • Standard Railing Height: 1070mm (42”) minimum
  • Where walking surface is ≤ 1800mm from ground: 920mm (36”) minimum
  • Stairs: Not less than 920mm (36”)
  • Landings: 1070mm (42”) minimum

9. Installation Considerations:

  • Aluminum base for top mount installations
  • Aluminum brackets for face mount installations, allowing precise adjustments
  • Post and base caps (plastic) included for top mount installation

10. Measurements & Site Preparation:

  • All measurements must be taken on-site before fabrication

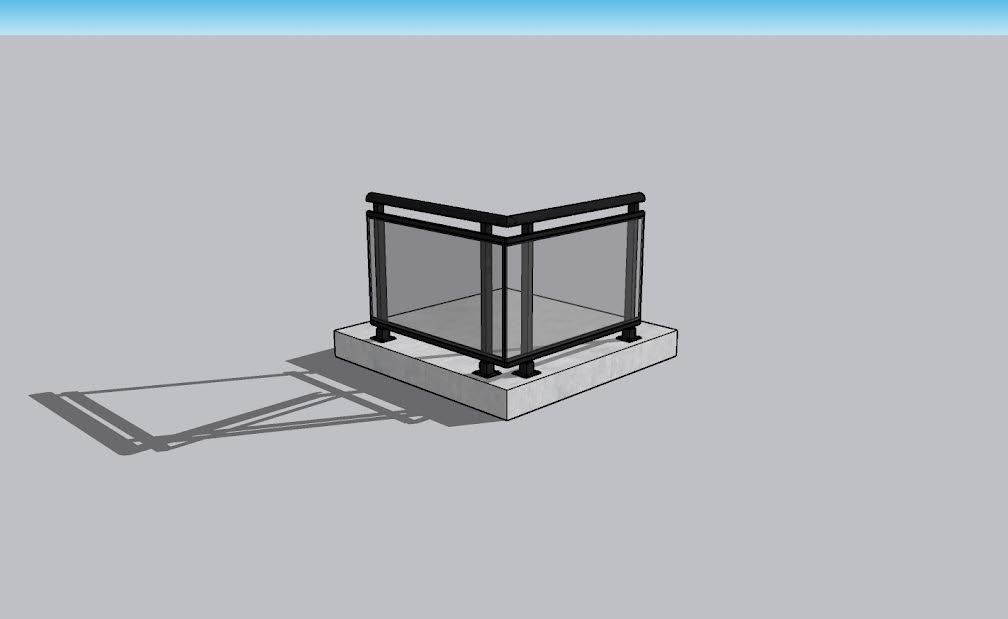

Glass Railing "AG-HR" installation
Glass Railing “AG-HR” installation process step by step in concrete

Best manufacturer supply company in toronto GTA

For high-quality, durable, and stylish aluminum railings, Alumiguard MFG offers a range of factory-direct, powder-coated finishes to match any architectural style. Whether you need picket railing systems for residential or commercial projects, our pre-assembled railing solutions ensure easy installation and long-lasting performance.

Serving Toronto, North York, Vaughan, Mississauga, Richmond Hill, Markham, Scarborough, and surrounding areas, we provide expert craftsmanship and reliable delivery straight to your project site.

Contact Alumiguard MFG today for a custom quote and professional guidance on your aluminum railing needs.
